iLux Pro Dental
Less labor, more smiles.
Accurate, same-day clear aligners onsite.
Reduce labor, overhead, and lead time compared to traditional thermoforming. Discover high-throughput chair side 3D printing.
What makes iLux Pro Dental unique:
Digital Polishing™
Clear appliances direct from the printer, no manual polishing, powered by LEAP™.
75% reduction in polishing time 80% higher clarity

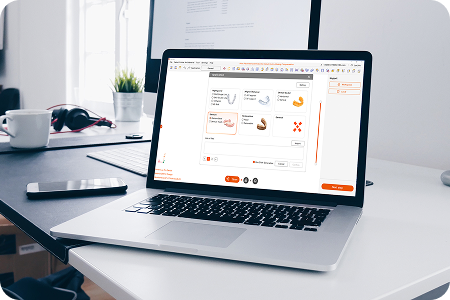

Software anyone can use
Easy one click steps with automated setups and application specific workflows that maximize efficiency.
Enhanced Materials
LuxCreo resins perform harmoniously with our hardware and software for optimal throughput, quality and accuracy.
Don't just take our word for it...
"With the iLux Dental Pro and clear aligner solution, I've eliminated the waiting or worse rework period after a patient gets their initial scan, as a result my patient chair time is reduced as well as my traditional outsourcing and in-house thermoforming costs, this is a game changer for my practice."
- Dr. Wu, Owner of Wu Orthodontics
Direct Print Aligner Workflow
Validated direct print, same-day clear aligner workflow.
Design
Load

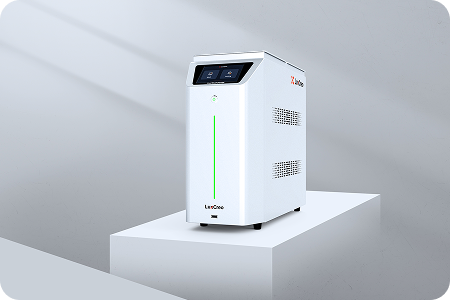

Wash&Cure
First FDA cleared 510 (k) Class II direct print aligner workflow.
Expansive Capabilities
Orthodontic Model

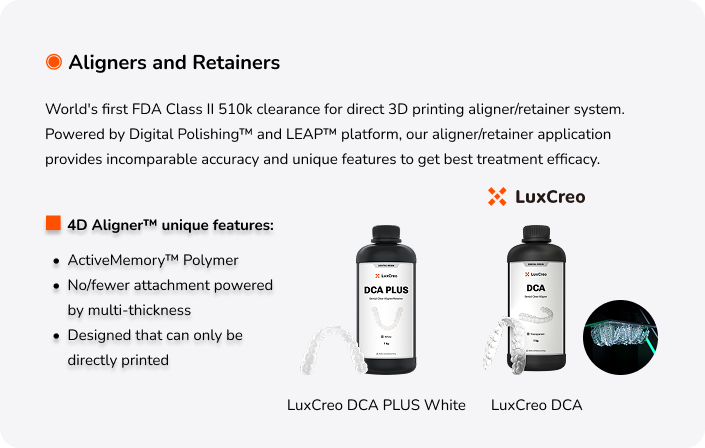

Aligner & Retainer

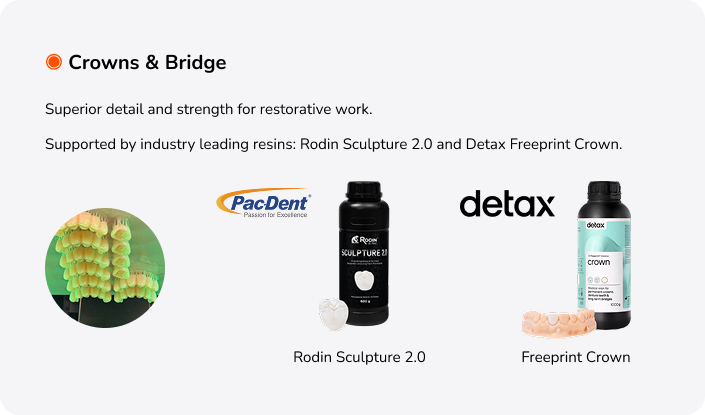

Temporary Crown

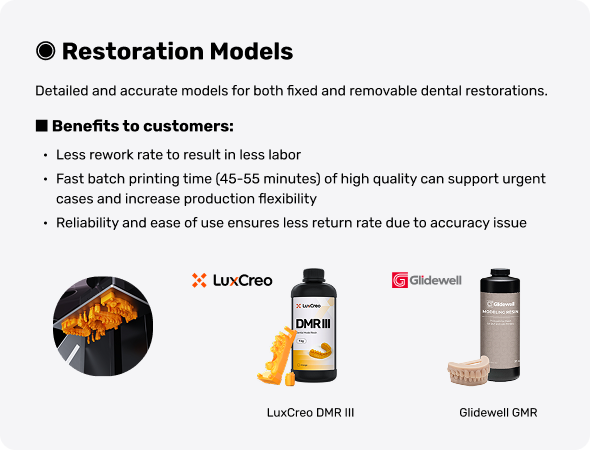

Restoration Models

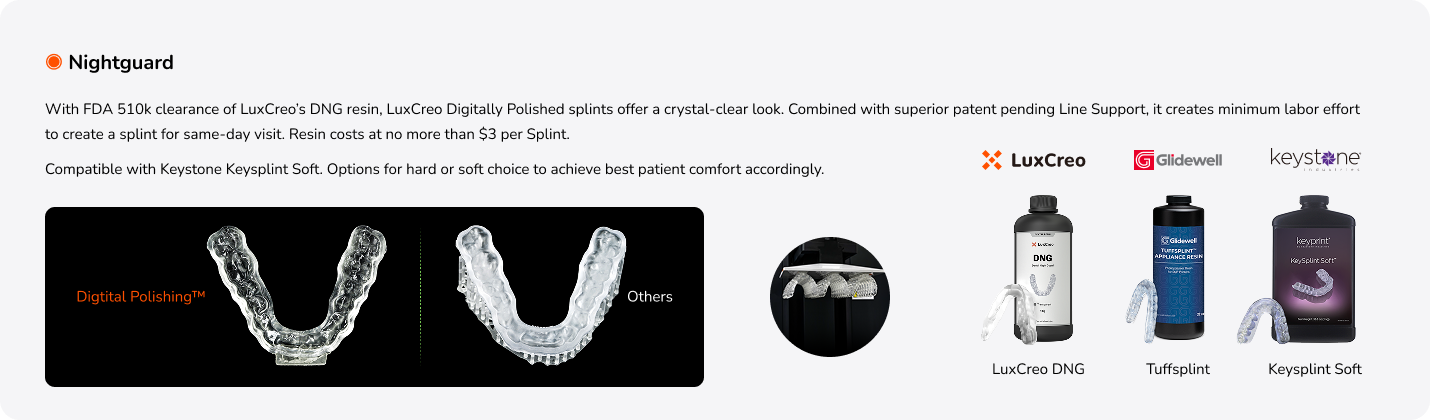

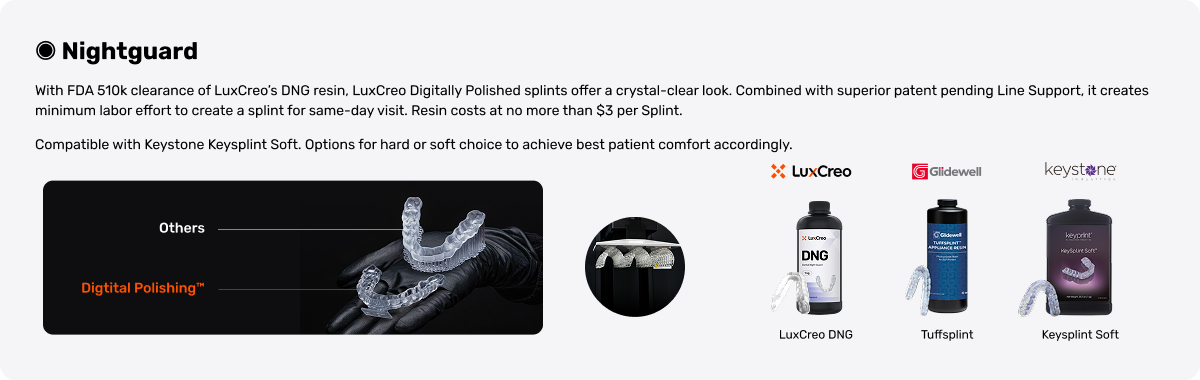

Splint
Surgical Guide

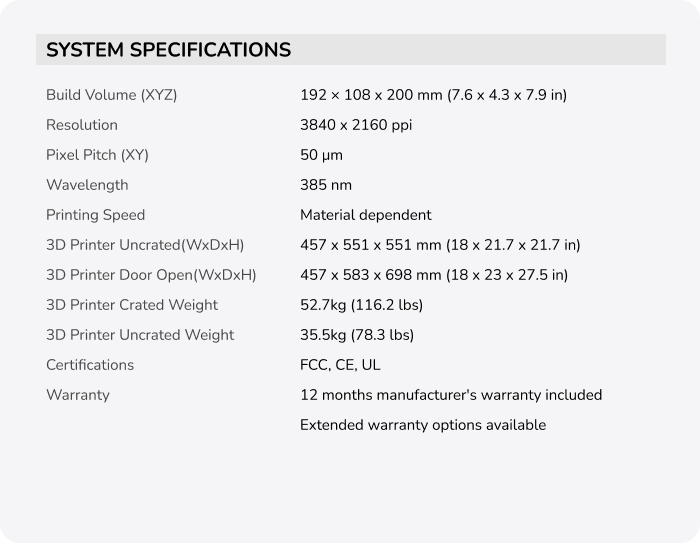

Key Specs
| iLux Pro Dental | Lux 3D+ | ||
|---|---|---|---|

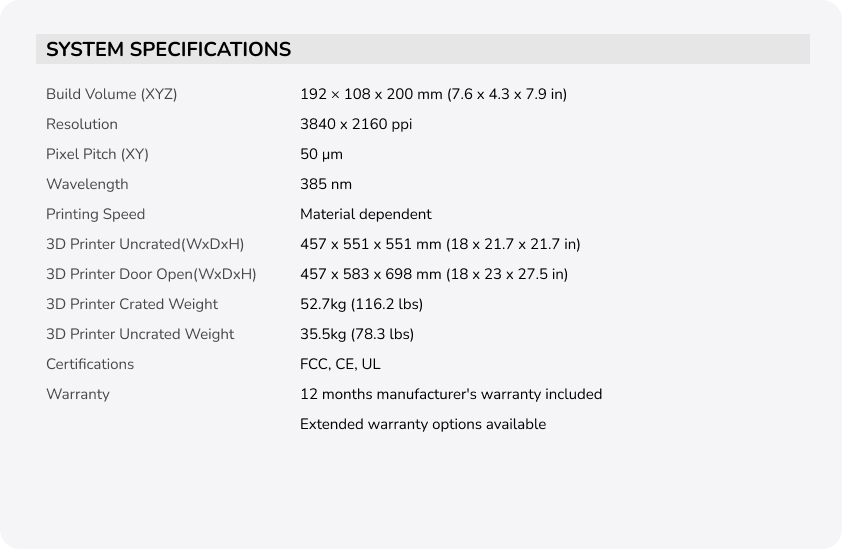

| SYSTEM SPECIFICATIONS | |||
| Build Volume |
192mm (W) × 108mm (D) x 200 mm (H) (7.6 x 4.3 x 7.9 in) |
293mm (W) × 165mm (D) x 200 mm (H) (11.5 x 6.5 x 7.9 in) |
|
| Resolution | 3840×2160 ppi | 3840×2160 ppi | |
| Pixel Pitch (XY) | 50 μm | 0.020-0.15mm | |
| UV Wavelength | 385 nm | 385nm / 405 nm | |
| Printing Speed | Model & Material Dependent | ||
| 3D Printer Uncrated(WxDxH) | 457 x 545 x 550 mm (18 x 21.5 x 21.7 in) | 850 × 780 × 1870 mm (33 x 31 x 74 in) | |
| 3D Printer Door Open(WxDxH) | 457 x 583 x 698 mm (18 x 23 x 27.5 in) | 850 × 780 × 2420 mm (33 x 31 x 95 in) | |
| 3D Printer Crated Weight | 54kg (119 lbs) | 500 kg (1102 lbs) | |
| 3D Printer Uncrated Weight | 35.5kg (78.3 lbs) | 400 kg (882 lbs) | |
| Certifications | FCC, CE | CE | |
| Warranty |
12 months manufacturer's warranty included Extended warranty options available |
||

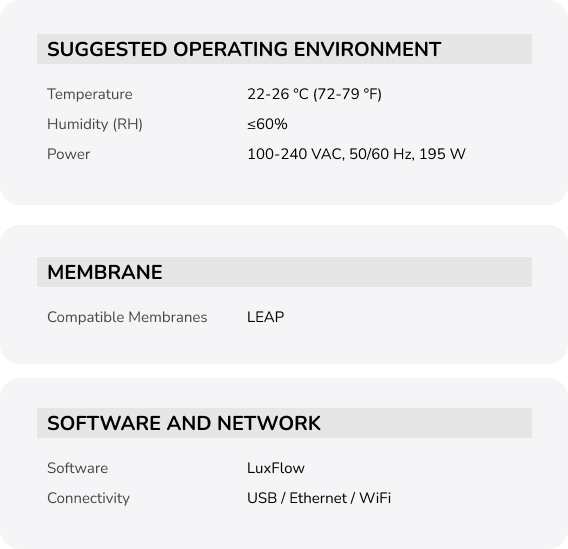

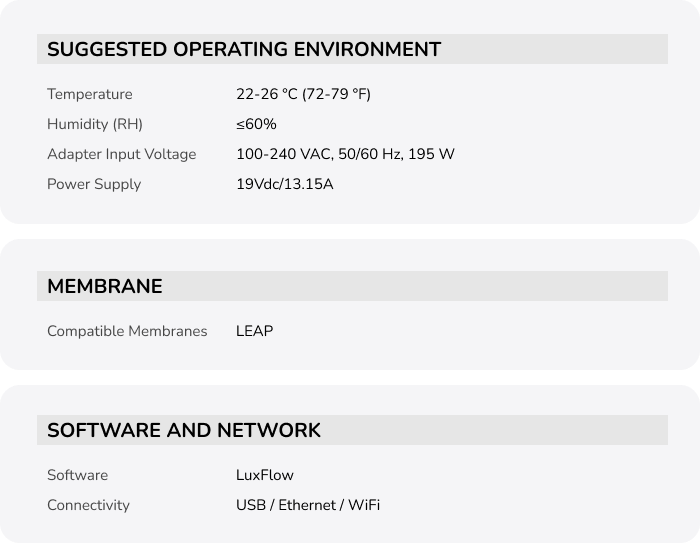

| SUGGESTED OPERATING ENVIRONMENT | |||
| Temperature | 22-26 °C (72-79 °F) | ||
| Humidity (RH) | ≤60% | ≤40% | |
| Power | 100-240 VAC, 50/60 Hz, 195 W |
100-240 VAC, 50/60 Hz, 500/1500 W (printing / heating power) |
|
| MEMBRANE | |||
| Compatible Membranes | LEAP | ||

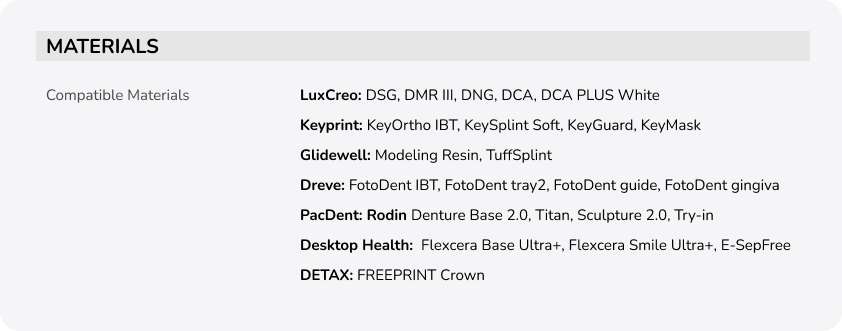

| MATERIALS | |||

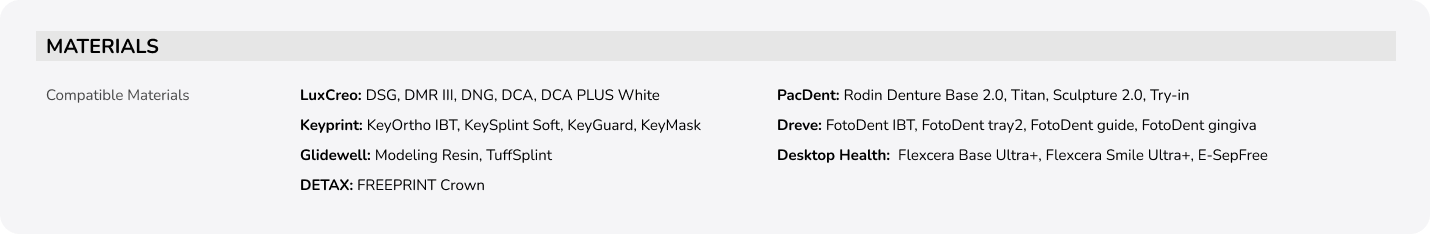

| Compatible Materials | DMR, DNG, DCA, KeySplint Soft | DMR III, DSG 07, DNG 06, KeySplint Soft | |
| Material Packaging | Material dependent | ||
| SOFTWARE AND NETWORK | |||
| Software | LuxFlow | ||
| Connectivity | USB / Ethernet / WiFi | ||

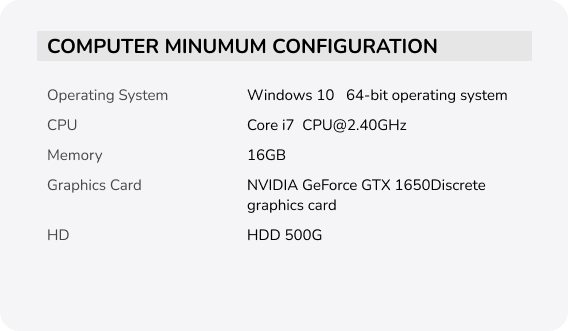

| MINIMUM CONFIGURATION | |||
| Operating System | Windows 10 64-bit operating system | ||
| CPU | Core i7 CPU@2.40GHz | ||
| Memory | 16GB | ||
| Graphics Card | NVIDIA GeForce GTX 1650Discrete graphics card | ||
| HD | HDD 500G | ||
