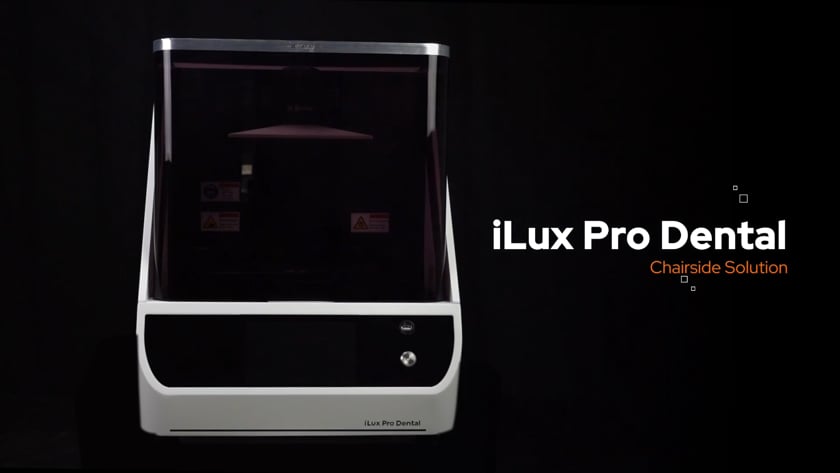

iLux Pro Dental

Less labor, more smiles​.

ilux-pro-dental

Accurate, same-day clear aligners on-site.

Reduce labor, overhead, and lead time compared to traditional thermoforming. Discover high-throughput chairside 3D printing.

What makes iLux Pro Dental unique:

Aligner & Retainer

Digital Polishing™

Clear appliances direct from the printer, no manual polishing, powered by LEAP™.​ 75% reduced polishing, 80% higher clarity​.

LuxAlign_full-batch

Software anyone can use

Easy one click steps with automated setups and application specific workflows that maximize efficiency​.

Lux3D_full_platform_vertical-scaled

Enhanced Materials

LuxCreo resins perform harmoniously with our hardware and software for optimal throughput, quality, and accuracy​.

Don’t just take our word for it...

“With the iLux Dental Pro and clear aligner solution, I’ve eliminated the waiting or worse rework period after a patient gets their initial scan. As a result my patient chair time is reduced as well as my traditional outsourcing and in-house thermoforming costs. This is a game changer for my practice.”

- Dr. Wu, Owner of Wu Orthodontics

Direct Print Aligner Workflow​

Validated direct print, same-day clear aligner workflow​.

Design

Load

Print

Finish

First FDA cleared 510 (k) Class II direct print aligner workflow.

Expansive Capabilities

Orthodontic Model

Aligner & Retainer

Temporary Crown

Restoration Models

Splint

Surgical Guide

Key Specs

iLux Pro Dental Lux 3D+
SYSTEM SPECIFICATIONS
Build Volume 192mm (W) × 108mm (D) x 200 mm (H)
(7.6 x 4.3 x 7.9 in)
293mm (W) × 165mm (D) x 200 mm (H)
(11.5 x 6.5 x 7.9 in)
Resolution 2560×1600 ppi 3840×2160 ppi
Pixel Pitch (XY) 50 μm 0.020-0.15mm
UV Wavelength 385 nm 385nm / 405 nm
Printing Speed Model & Material Dependent
3D Printer Uncrated(WxDxH) 457 x 545 x 550 mm (18 x 21.5 x 21.7 in) 850 × 780 × 1870 mm (33 x 31 x 74 in)
3D Printer Door Open(WxDxH) 457 x 583 x 698 mm (18 x 23 x 27.5 in) 850 × 780 × 2420 mm (33 x 31 x 95 in)
3D Printer Crated Weight 54kg (119 lbs) 500 kg (1102 lbs)
3D Printer Uncrated Weight 35.5kg (78.3 lbs) 400 kg (882 lbs)
Certifications FCC, CE CE
Warranty 12 months manufacturer's warranty included
Extended warranty options available
SUGGESTED OPERATING ENVIRONMENT
Temperature 22-26 °C (72-79 °F)
Humidity (RH) ≤60% ≤40%
Power 100-240 VAC, 50/60 Hz, 195 W 100-240 VAC, 50/60 Hz, 500/1500 W
(printing / heating power)
MEMBRANE
Compatible Membranes LEAP
MATERIALS
Compatible Materials DMR, DNG, DCA, KeySplint Soft DMR III, DSG 07, DNG 06, KeySplint Soft
Material Packaging Material dependent
SOFTWARE AND NETWORK
Software LuxFlow
Connectivity USB / Ethernet / WiFi
MINIMUM CONFIGURATION
Operating System Windows 10 64-bit operating system
CPU Core i7 CPU@2.40GHz
Memory 16GB
Graphics Card NVIDIA GeForce GTX 1650Discrete graphics card
HD HDD 500G
