The In-House 3D Printed Aligner Workflow: From Scan to Same-Day Smile

Dental practices worldwide are discovering how in-house 3D printed aligners can completely reshape their orthodontic workflows, turning what once took weeks into same-day treatments that delight both practitioners and patients. A 3D Printed Aligner Workflow enables dental practitioners to produce custom orthodontic appliances directly in their clinics, dramatically reducing treatment times from weeks to hours while maintaining exceptional quality and precision. This comprehensive In-House 3D Printed Aligner approach leverages LuxCreo’s integrated ecosystem of hardware, software, and materials to deliver same-day orthodontic solutions.

The Evolution of Clear Aligner Therapy

Clear aligner therapy has become the preferred orthodontic treatment for millions of patients worldwide, offering aesthetic appeal and treatment convenience. Traditional workflows rely on outsourced manufacturing, creating lengthy turnaround times that can delay treatment starts and reduce patient satisfaction. The emergence of In-House 3D Printed Aligner technology addresses these challenges by bringing production capabilities directly into dental practices.

Benefits of In-House 3D Printing vs. Outsourced Workflows

The transition from outsourced thermoforming to direct 3D printing delivers transformative advantages. Traditional thermoformed aligner production requires at least 2-4 weeks for delivery, while the 3D Printed Aligner Workflow reduces this to just 2-3 hours from scan to delivery. This dramatic reduction in turnaround time enables same-day treatment starts, improving patient conversion rates and practice efficiency.

LuxCreo’s direct printing technology achieves 80% higher clarity compared to competitors while reducing polishing time by 75%. The system delivers 3x revenue growth with the same workforce through increased labor productivity, with only 1.5 minutes of active labor required per aligner compared to 5.5 minutes for traditional workflows.

Overview of LuxCreo’s Integrated Ecosystem

LuxCreo’s comprehensive solution encompasses every aspect of the 3D Printed Aligner Workflow, from initial scan processing to final delivery. The ecosystem includes the FDA-cleared aligner material DCA, LuxDesign software for automated aligner shell generation, LuxFlow for print preparation, and specialized post-processing equipment, including iLuxWash Dental and iLuxCure Pro.

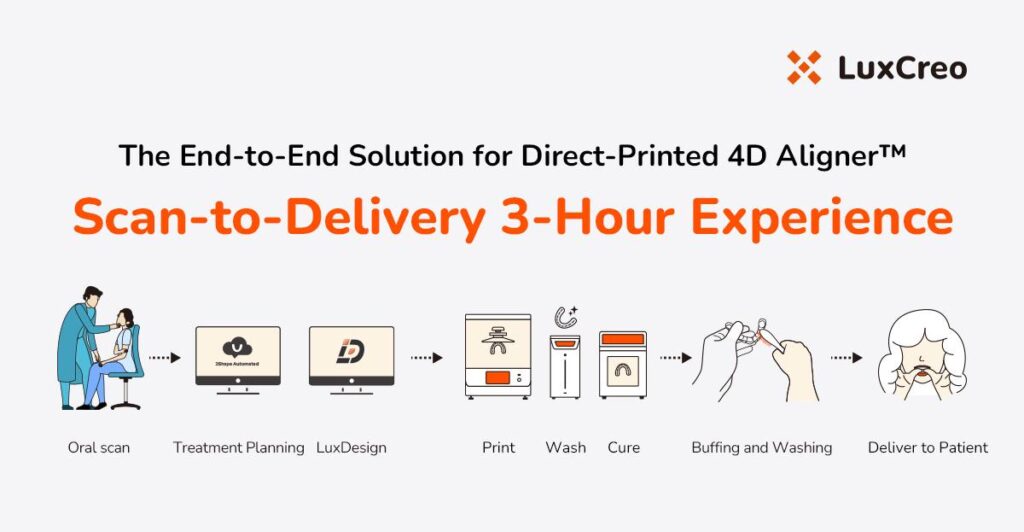

Scan-to-Delivery 3-Hour Experience

LuxCreo’s clear aligner production workflow: the clinician performs an intraoral scan to capture the patient’s oral anatomy and dentition, imports the data into treatment-planning software to auto-generate the treatment an AI-driven plan, then loads the plan into LuxDesign for aligner shell design. Without any file-format conversions, the design is sent directly to LuxFlow for slicing and print preparation, then to the iLux Pro Dental for printing. After a brief iLuxWash cleaning and iLuxCure curing process, the patient receives their custom aligner— all within just three hours.

Capturing the Patient’s Oral Anatomy

Intraoral Scanning Technologies: Speed and Accuracy

The 3D Printed Aligner Workflow begins with high-resolution intraoral scanning to capture precise digital impressions of the patient’s dentition. Modern scanning technologies provide accuracy within 20-50 microns, enabling the creation of detailed digital models that serve as the foundation for aligner design.

Treatment Planning and Digital Setup

Generating Tooth Movement Sequences

Orthodontic tooth movement is performed in third-party treatment planning software such as 3Shape, Ulab or TiTan. LuxCreo’s LuxDesign software then seamlessly integrates with these platforms to automatically generate aligner shell models specifically optimized for direct 3D printing.

Automating Aligner Shell Creation with One-Click AI

Powered by AI, LuxDesign automatically repairs models, generates block-outs, and creates optimized aligner shells for direct 3D printing—all in just one click.

Special Features of LuxDesign:

• Automatic Gap Filling Option
• Trimline Adjustments for Perfect Fit

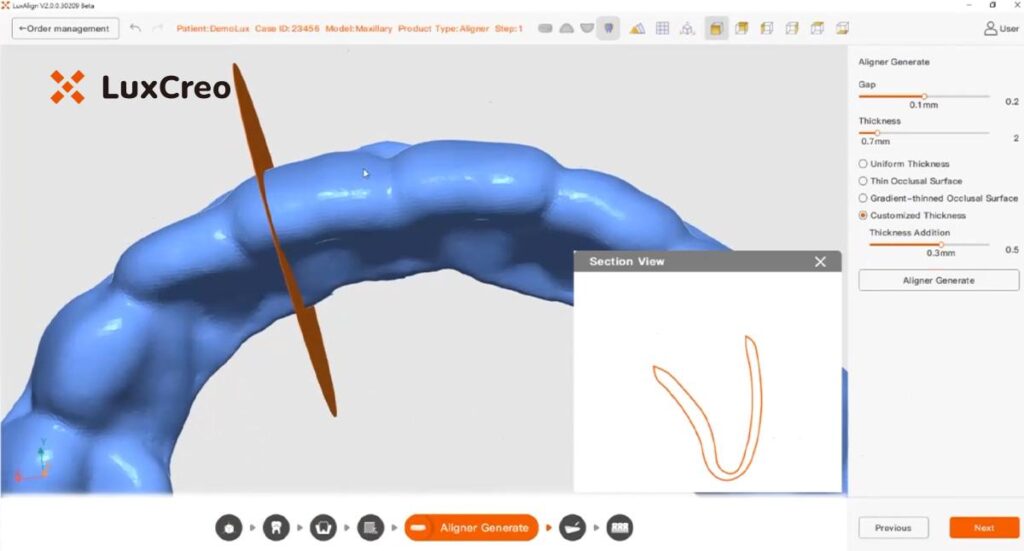

• Customized Thickness for Optimized Force Control
• Auxilliary Attachments for Customized Device

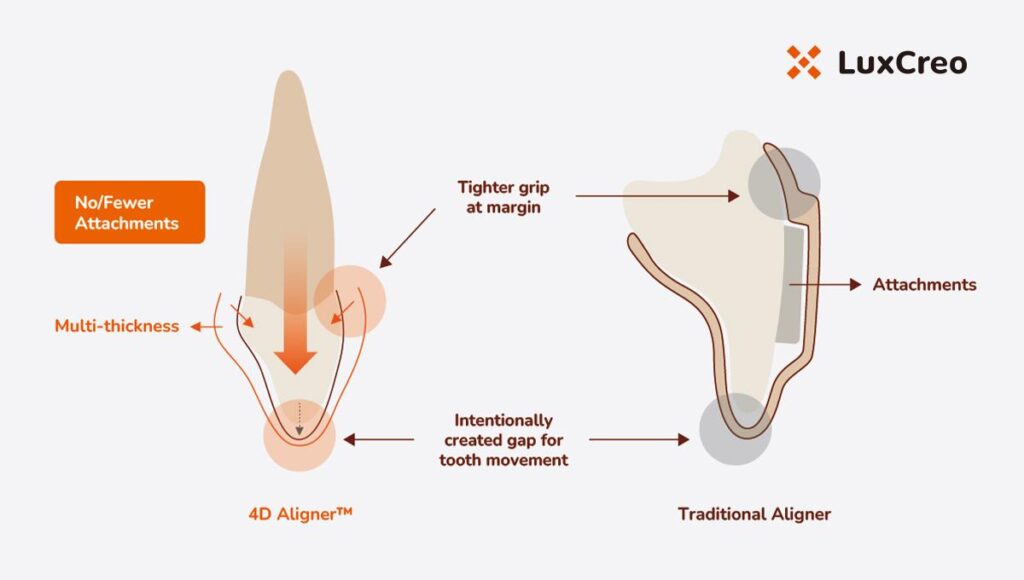

Comparing Multi-Thickness vs. Uniform-Thickness Strategies

LuxCreo’s 4D Aligner technology enables multi-thickness design with AI-generated thickness and gap variations to enhance control and achieve targeted force application. This approach provides superior biomechanical control compared to uniform-thickness aligners, enabling more predictable tooth movement with fewer attachments required.

Instead of replacing clinical judgment, this workflow puts doctors in full control of treatment design while eliminating time-consuming manual steps. From trim-line creation to shell preparation, LuxDesign streamlines the entire process so clinicians can focus on what matters most: delivering better outcomes for patients.

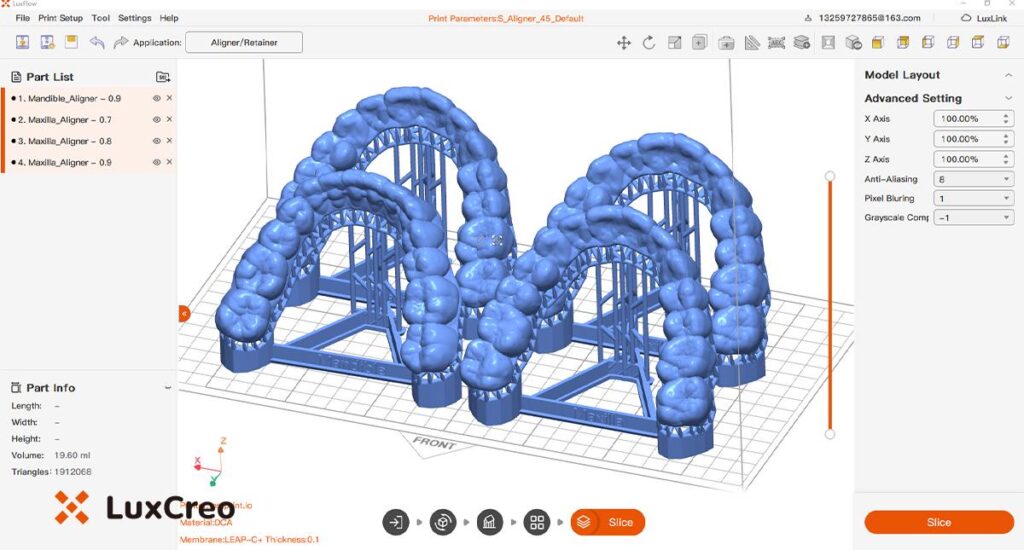

Preparing for Print: LuxFlow Software

LuxFlow software streamlines every step of the 3D printed aligner workflow by automating model preparation, support generation, and slicing to meet demanding same-day throughput requirements. Imported STL files are automatically inspected and repaired to eliminate mesh irregularities, while intelligent orientation algorithms position each aligner for maximum print accuracy and minimal material usage.

Advanced support-generation routines create optimized structures that reduce post-processing time, and high-speed slicing and batching capabilities process multiple models simultaneously with resin-specific print parameters. The result is a fully integrated, efficient production pipeline that delivers consistent, high-quality aligners on the same day they are scanned.

Direct 3D Printing of Clear Aligners

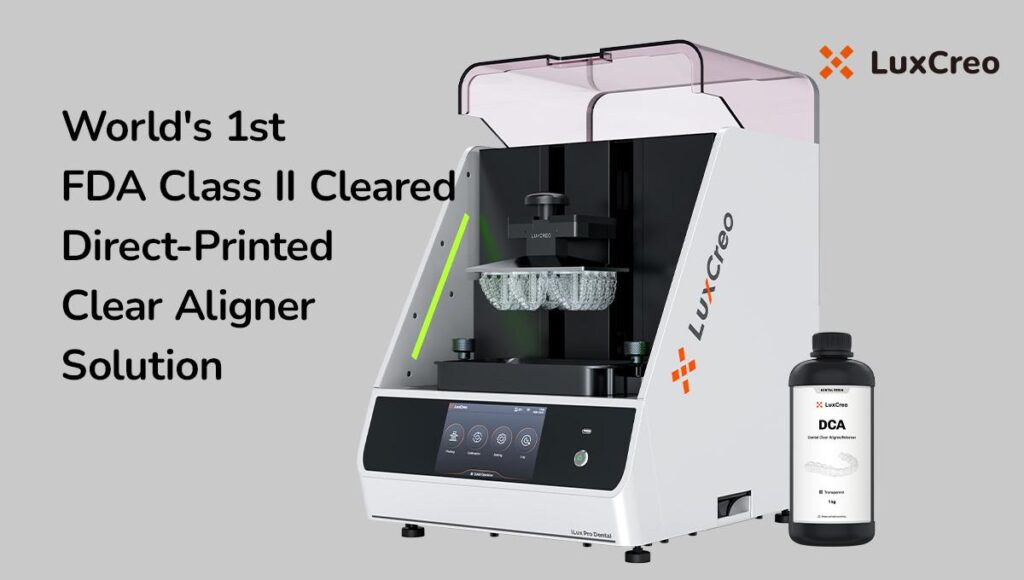

Choosing the Right Printer: iLux Pro Dental

The iLux Pro Dental represents LuxCreo’s desktop solution with a build volume of 192 x 108 x 200mm and 50μm pixel pitch, ideal for chairside applications. Patented with LEAP™ and Digital Polishing™ technology, the iLux Pro Dental delivers fast, accurate, and smooth-surface prints tailored for clinical use.

Learn more about iLux Pro Dental, visit: https://luxcreo.com/printers/ilux-pro-dental/

Post-Processing and Digital Polishing

Unloading, Washing, and Drying Printed Aligners

Post-processing begins immediately after printing completion, with careful removal of aligners from the build platform. Using appropriate tools, followed by thorough cleaning to remove uncured resin residues.

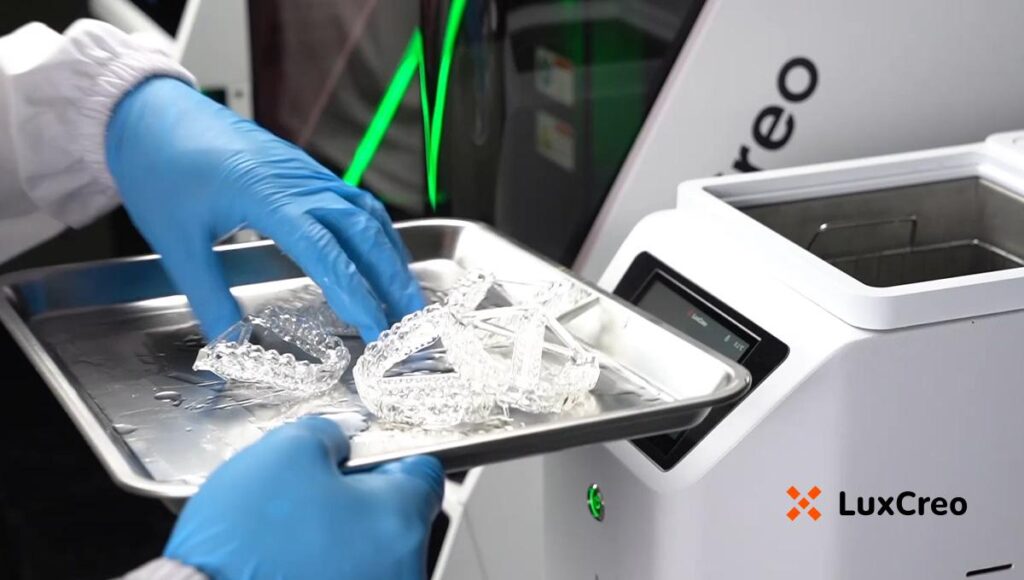

iLuxWash Dental – Automated Ultrasonic Agitation

The iLuxWash Dental system enhances ultrasonic cleaning through magnetic-driven impeller stirring function, rapidly agitating the cleaning solution while featuring heating functionality. This automated system prevents distortion issues from over-soaking while ensuring complete resin removal from printed parts.

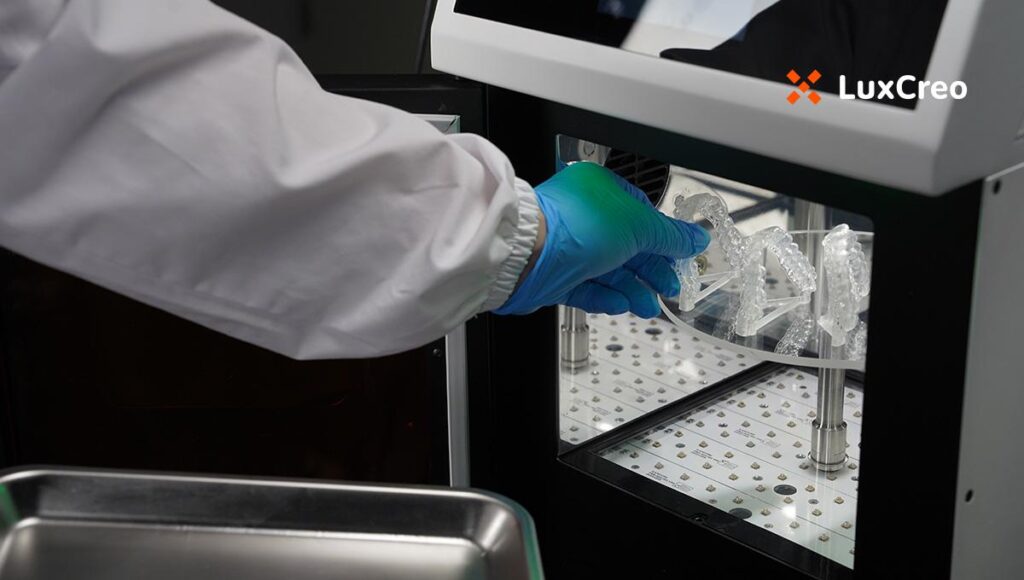

iLuxCure Pro – Consistent, 360° UV Curing

iLuxCure Pro provides upward and downward high-intensity lighting with heating function and 360° curing coverage. The system operates at 405-385nm wavelength with 95% uniformity, ensuring complete polymerization throughout the aligner structure. Heat curing at 60°C (140°F) optimizes mechanical properties and dimensional stability.

Digital Polishing™ Technology: Achieving Crystal Clear Glass-Like Transparency

Digital Polishing™ represents LuxCreo’s revolutionary solution, enabling incredibly clear appliances direct from the printer without manual polishing required by competing solutions. This technology delivers 80% higher clarity while reducing polishing time by 75%, significantly streamlining the In-House 3D Printed Aligner production process.

Packaging and Same-Day Patient Delivery

Complete aligner systems include foil bags, aligner containers, chewies, removal tools, and comprehensive care guides. The entire In-House 3D Printed Aligner process from scan to packaged delivery requires just 32-3 hours, enabling true same-day treatment starts.

Clinical Case Examples

Case 1

Patient Information

Male, adolescent

Permanent dentition

4D Aligner™

Treatment duration: 9 months

Treatment Story

The patient wanted to correct posterior crossbite. The treatment plan included upper 7s crossbite correction, buccal tipping of lower right to achieve symmetry with lower left quadrant, and lower anterior alignment.

The aligners were designed with no attachments, button cut-outs for elastics, multi-thickness and a smooth bite ramp.

After 9 months, posterior crossbite was corrected obviously.

The treatment is still in progress.

For more case studies, you can visit LuxCreo Clinical Case

Return on Investment and Practice Growth

Labor Productivity Gains: 3× Output with the Same Team

The In-House 3D Printed Aligner approach delivers exceptional productivity improvements, with practices achieving 3x revenue growth using the same workforce. The streamlined workflow reduces active labor requirements from 5.5 minutes per aligner in traditional processes to just 1.5 minutes with direct printing.

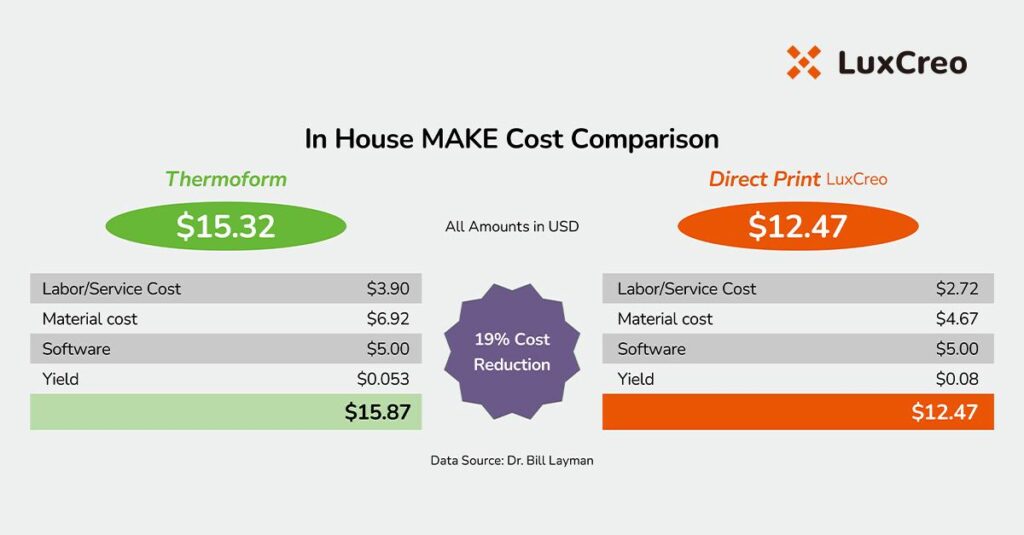

Cost Comparison: In-House vs. Thermoformed Outsourcing

Cost analysis demonstrates significant savings through in-house production. Direct printing reduces per-aligner costs by 19%, with total costs of $12.47 compared to $15.87 for thermoformed alternatives. Material costs, labor efficiency, and elimination of shipping expenses contribute to overall cost reduction.

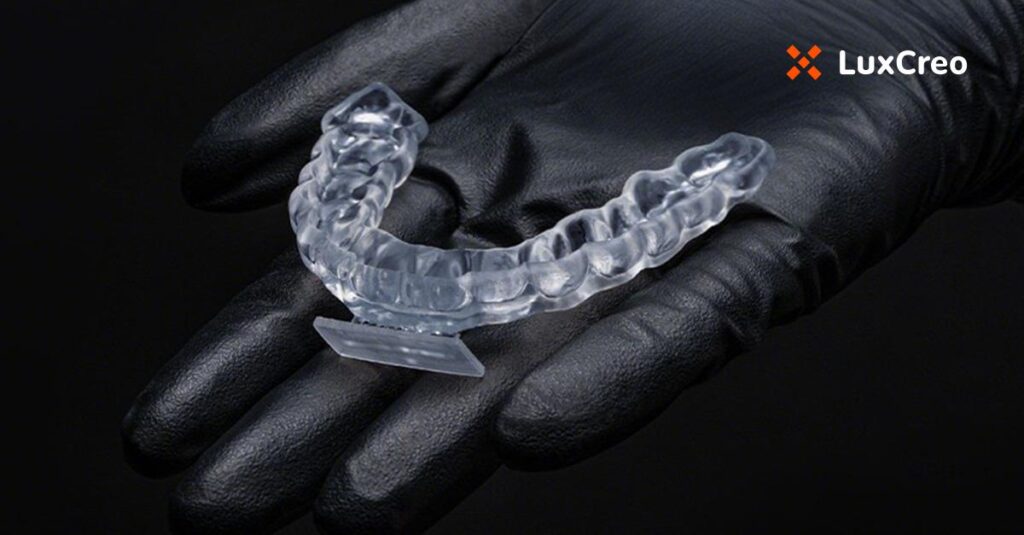

New Revenue Streams: Retainers, Night Guards, and Splints

The 3D Printed Aligner Workflow equipment and expertise enable practices to expand service offerings beyond aligners. The same systems produce night guards, retainers, and splints, creating additional revenue opportunities while leveraging existing investments in technology and training.

Conclusion and Next Steps

Integrating the Workflow into Your Practice

Successful implementation of an In-House 3D Printed Aligner system requires comprehensive planning, staff training, and gradual workflow integration. LuxCreo provides complete support throughout the transition process, ensuring practices maximize the benefits of same-day aligner production.

Training and Support from LuxCreo

LuxCreo offers extensive training programs and ongoing technical support to ensure successful implementation of the 3D Printed Aligner Workflow. Customer success teams provide 99% response rates within 60 minutes for technical support, ensuring minimal disruption to daily operations.

Continuous Innovation: ActiveMemory™, 4D Bright™, and Beyond

The evolution of In-House 3D Printed Aligner technology continues with innovations like ActiveMemory™ polymers that provide enhanced shape retention and 4D Bright™ aligners that combine orthodontic treatment with teeth whitening capabilities. These advances represent the future of chairside orthodontic care, delivering enhanced patient outcomes through integrated treatment approaches.

The 3D Printed Aligner Workflow represents a paradigm shift in orthodontic practice, enabling practitioners to deliver exceptional patient care through same-day treatment capabilities. With LuxCreo’s comprehensive ecosystem of hardware, software, and materials, practices can achieve superior clinical outcomes while building more profitable and efficient operations. The future of orthodontics lies in this integration of advanced technology with patient-centered care delivery, making the In-House 3D Printed Aligner approach an essential advancement for modern dental practices.
