LuxCreo DCA Resin
Empowering next-wave of digital orthodontics with direct-print aligners
A high-precision photopolymer engineered for smarter, faster and better orthodontics outcome
Going Above and Beyond for Clinical Safety and Efficacy
World First “FDA Class II 510(k)” for Direct Print Clear Aligner
Certifications
US_FDA Class II 510(k)
EU_CE MDR Class IIa
CN_NMPA Class II
JP_PMAD, TW_TFDA
Canada_Class II
Biocompatibility Testing
In Vitro Cytotoxicity
Oral Mucosa Irritation
Skin Irritation
Skin Sensitization
Genetic Toxicity
Acute Systemic Toxicity
Subcutaneous Implantation
Subchronic Systemic Toxicity
Pyrogen in Rabbits
Why DCA Why Direct Print?
Better Outcome, Less/No Attachment, and Expanded Indications are powered by our revolutionary ActiveMemory™ Polymer.

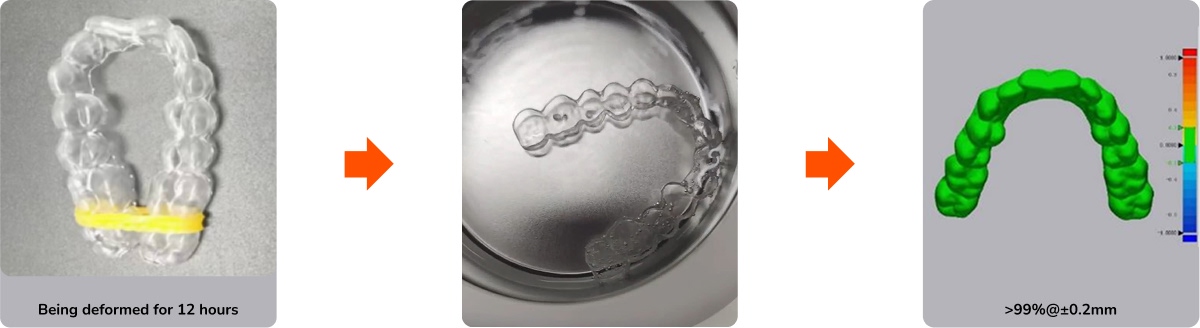

Complete Shape Recovery
Instantaneous recovery of geometry with heat excitation
☑ Full Geometric Recovery
- Instantaneous and complete restoration to
original shape - Repeatable recovery from material creeping
☑ Thermal Excitation Mechanism
- Triggered by heat stimulus ≥60℃
- Recovery speed increases with temperature:
100℃: Full recovery within 60 seconds
Complete Force Restoration
Rejuvenated as if new for a more predictable outcome
Force Retention
- Full correction force restoration upon geometric recovery
- Continuous force rejuvenation post-recovery

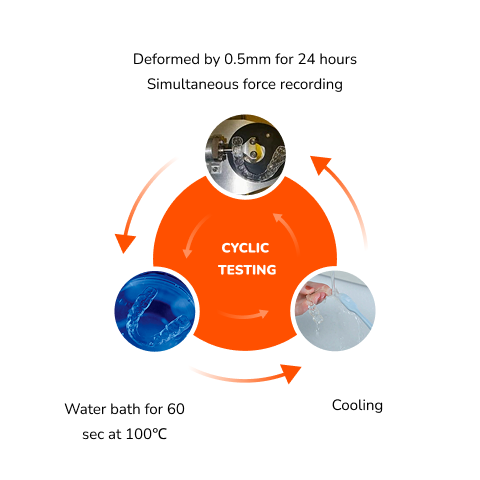

Cyclic Stability
- No degradation in mechanical properties during
shape memory cycling
Thermo-Mechanical Properties
Consistent performance at intraoral or elevated temperatures.
1
Material Characteristics
Clinical Advantages

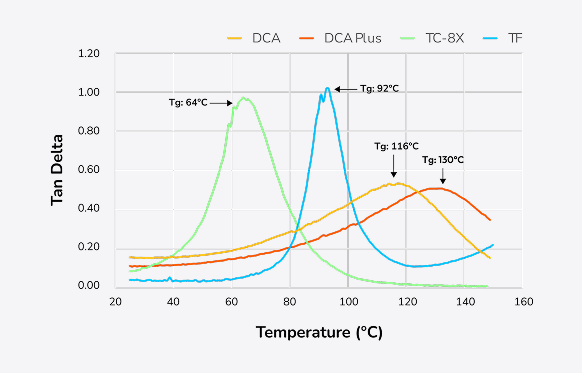

High Tg
Material Characteristics
- Survives boiling water (100°C) exposure
- Maintains structural rigidity at elevated temperatures
Clinical Advantages
- Maintains geometric accuracy post thermal activation
- Ensures consistent shape memory performance

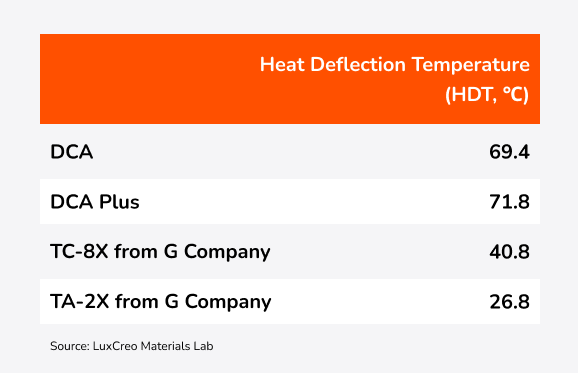

High HDT
Material Characteristics
- Heat deflection temperature exceeds intraoral thresholds
- No softening during clinical use
Clinical Advantages
- Sufficient modulus in oral environment
- Delivers stable corrective forces
Easy Workflow
No spinning, no nitrogen needed. Experience a simplified, efficient process.
Frequently Asked Questions
What are the main components of the material, and is it recyclable?
The DCA material is multi-component based on our proprietary technology. Properties are similar to TPU. Though it is not
recyclable, it cuts 90% of the non-recyclable waste compared to a thermoforming process.
How much material is consumed to print one aligner?
6-7g for a single aligner, so one bottle for 100-120 aligners (2 patients).
Can I purchase your DCA resin to be printed on my printer, e.g. Formlabs?
No, DCA resin workflow is closed solution system. The full workflow needs to comply to registration to ensure safety and
efficacy.
Powered by an Integrated Ecosystem
We control every element - hardware, software, and materials - to guarantee performance and consistency.
Hardware
Cloud Connected 3D Printer Solution
Precision, Simplicity, Reliability, Automation
Chairside and Dental Lab Series: iLux Pro Dental
Material
High-performance, Biocompatible, Medical grade
DCA DCA+ DNG DMR DSG
Software
1-Click, Machine Learning, Telemetry
LuxDesign
Aligner/Retainer/EMA 3D™ Design Engine
LuxFlow
One-Click Print Preparation
LuxCloud
One-stop Design SaaS Platform
LuxLink
Fleet Management, Remote Monitoring
Ready for Your First Diret-Print Aligner?
Discover how LuxCreo’s ecosystem and direct-print aligner solution can elevate your patients experience. Contact us for a consultation.
