Summary

Clear aligner therapy has revolutionized orthodontics by offering a discreet, patient-friendly alternative to braces. Historically, aligners have been fabricated from thermoformed plastics such as PET-G or TPU. While accessible, these materials suffer from irreversible deformation, rapid force decay, and variations in fit—leading to frequent refinements and unpredictable outcomes. Direct 3D printing combined with novel resin chemistries introduces a new era in aligner fabrication. Among these innovations, LuxCreo’s ActiveMemory™ Polymer enables aligners to regain their original shape and strength in hot water, addressing the unmet clinical needs of both orthodontists and patients.

LuxCreo’s ActiveMemory™ Polymer (AMP) represents a paradigm shift in clear aligner therapy by overcoming the fundamental drawbacks of conventional thermoformed plastics. Through a dual-mechanism, multi-component architecture, AMP delivers consistent, predictable orthodontic forces intraorally, while enabling full geometric and force restoration via external thermal activation. This results in enhanced treatment precision, reduced refinement needs, improved patient comfort, and sustainable workflows.

Material Science Fundamentals

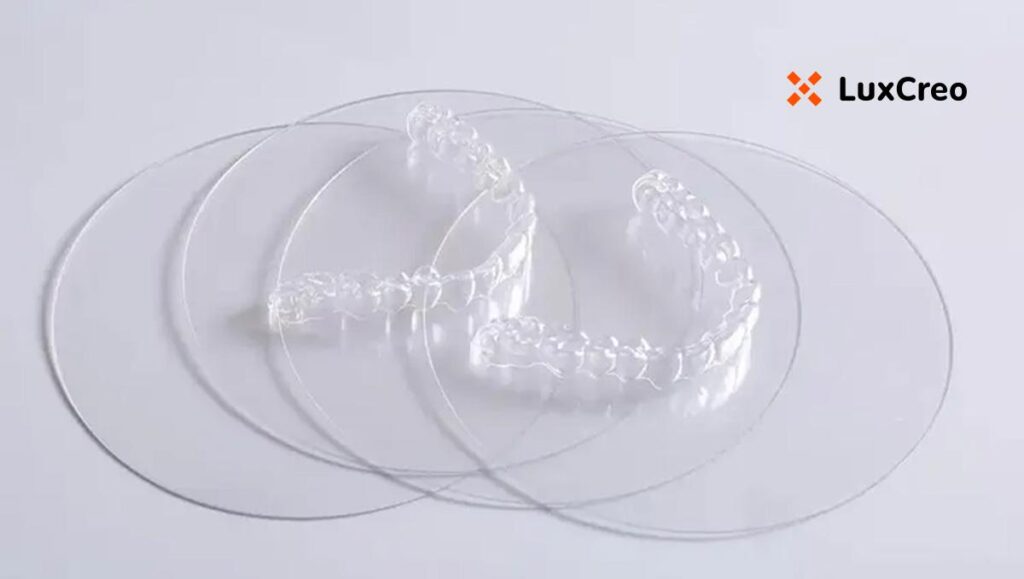

Thermoformed Plastics

Thermoformed aligners rely on heating and vacuum-forming flat polymer sheets over dental models. Commonly used polymers (e.g., PET-G, TPU) exhibit:

• Permanent Deformation: Sustained intraoral stresses induce creep, causing irreversible thinning, loss of force, and misalignment from the treatment plan.
• Variable Thickness & Gaps: The thermoforming process generates local thickness variations around undercuts and interproximal spaces, which are uncontrollable and often necessitate attachments or refinements.
• High Initial Forces & Hydrolysis: Excessive elastic recoil can discomfort patients, while water absorption leads to structural weakening over time.

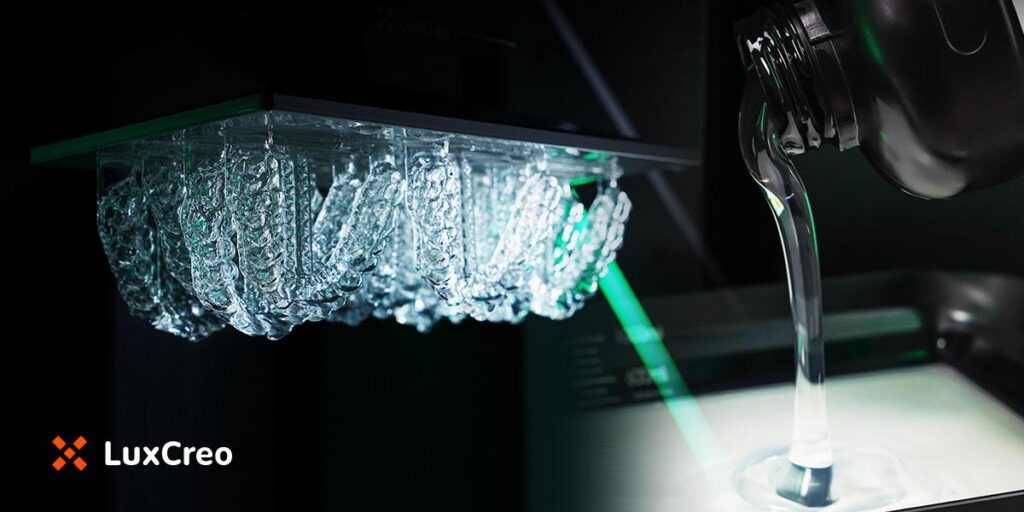

ActiveMemory™ Polymer (AMP)

ActiveMemory™ Polymer is a photocurable resin system specifically engineered for direct 3D printing. Its multi-component architecture comprises a hard segment that maintains a stable elastic modulus across intraoral (37 °C) and ambient (25 °C) temperatures—varying by less than 10%—and a soft segment that allows reversible deformation under load. Unlike conventional shape memory polymers (SMPs) activated at body temperature, whose glass-to-rubber phase transition dramatically reduces stiffness (>70% modulus drop), AMP decouples intraoral mechanical stability from post-removal thermal restoration. When thermally excited above 60 °C in an external device or hot water, AMP fully restores its original geometry within 0.1 mm tolerance and recovers its initial force profile reliably across multiple restoration cycles.

Manufacturing and Workflow

Thermoforming Process

The thermoforming workflow comprises three main stages:

1. Model Production: Dental technicians print or cast Dental stone from intraoral scans.
2. Heating & Forming: Polymer sheets are heated to their forming temperature, draped over models, and vacuum-formed. Trimming tools then remove excess material.
3. Post-Processing & Quality Control: Manual finishing corrects imperfections, and fit tests often reveal inconsistencies, necessitating refinements and additional aligner sets. This iterative process consumes time and materials, delaying treatment progression.

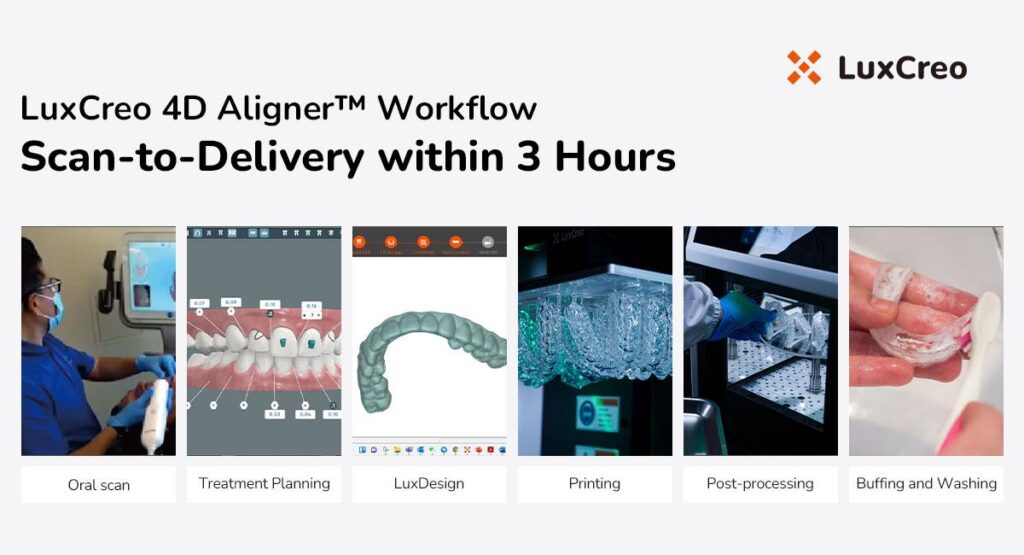

Direct Printing with AMP Scan-to-Delivery: Complete 3-Hour Workflow

Direct 3D printing with AMP delivers a complete closed-loop workflow from scan to delivery:

1. Intraoral Scanning & Treatment Planning: Starting with intraoral scanning to capture patient oral structure and dentition, data is imported into treatment planning software that automatically generates orthodontic treatment plans, eliminating the need for physical models.
2. Digital Design in LuxDesign: Treatment plans are seamlessly imported into LuxDesign software for precise aligner shell design with clinician-controlled parameters for thickness, offset, and attachment placement.
3. Direct Slicing & Printing: Completed designs are directly imported into LuxFlow software for pre-print slicing without format conversion, then sent to iLux Pro Dental printers for layer-by-layer photopolymerization using DLP technology.
4. Automated Post-Processing: Printed aligners undergo automated iLuxWash solvent cleaning to remove uncured resin, followed by iLuxCure UV post-curing to complete polymerization and achieve optimal mechanical properties.

ActiveMemory™ Patient Activation: Patients can restore their aligner’s original shape and force capacity through simple thermal activation in hot water (>60°C), ensuring consistent treatment effectiveness throughout the wear cycle.

This seamless closed-loop ecosystem ensures precision while dramatically reducing production time from days to just 3 hours, enabling same-day aligner delivery.

Mechanical Performance Comparison

Property	Thermoformed Plastics	ActiveMemory™ Polymer
Elastic Modulus Variation	Significant creep & decay	<10% variation between 25°C & 37°C
Force Retention	Irreversible force loss over time	Sustained elastic force intraorally
Load-Deflection Behavior	High initial force, rapid decay	Optimal initial force, stable profile
Shape & Force Restoration	No shape memory	Full geometric & force recovery via thermal activation

Clinical Performance and Predictability

The clinical advantages of AMP extend beyond material science into improved treatment outcomes:

• Precision of Tooth Movement: By maintaining a stable force delivery that closely matches digital treatment prescriptions, AMP minimizes deviations in tooth trajectory, reducing the need for refinements.
• Fit and Adaptation: Direct printing yields Multivariable thickness and seamless adaptation to dental surfaces, eliminating gaps that compromise retention and comfort.
• Long-Term Force Retention: AMP mitigates creep-induced setbacks, ensuring that therapeutic forces remain within optimal ranges throughout each wear cycle.
• Treatment Efficiency: The ability to thermally rejuvenate aligners daily accelerates tooth movement by avoiding the loss of force associated with conventional materials. Early clinical observations suggest potential reductions in total treatment time and number of aligner sets required.

Patient Experience and Comfort

Patient comfort is paramount in orthodontic therapy. AMP’s balanced force application at insertion alleviates the discomfort associated with excessive recoil in thermoformed aligners. Because the hard component of the resin maintains stiffness under intraoral conditions, there is no undesirable softening or relaxation that can compromise sleep or daily activities.

Sustainability and Cost Efficiency

Eco-friendly and cost-effective practices are increasingly important in modern dentistry. Direct printing with AMP delivers:

• Reduced Material Waste: Eliminating resin models and excessive trimming minimizes landfill contributions.
• Streamlined Production: Automated printing and Digital Polishing™ reduce manual labor costs and production times, enhancing clinic throughput.
• On-Demand Fabrication: Digital storage of aligner designs enables rapid reprovisioning without stocking large inventories, lowering overhead and obsolescence.

Conclusion

ActiveMemory™ Polymer transcends the inherent limitations of thermoformed plastics and intraoral SMPs by combining stable intraoral force delivery with reliable external shape and force restoration. This dual-mechanism approach enhances clinical predictability, reduces the need for refinements, improves patient comfort, and promotes environmentally conscious workflows. As direct printing technologies and polymer science continue to evolve, AMP stands as a testament to the transformative potential of materials engineering in advancing patient care and setting a new benchmark for clear aligner therapy.
